UL2464 Shielded Cable 9-Conductor 24/22/20/18 AWG, Tinned Copper, Flexible PVC Jacket, 300V Multi-Core Wire Low Voltage for Industrial Control, Signal & Data Transmission(100ft,24AWG-9c)

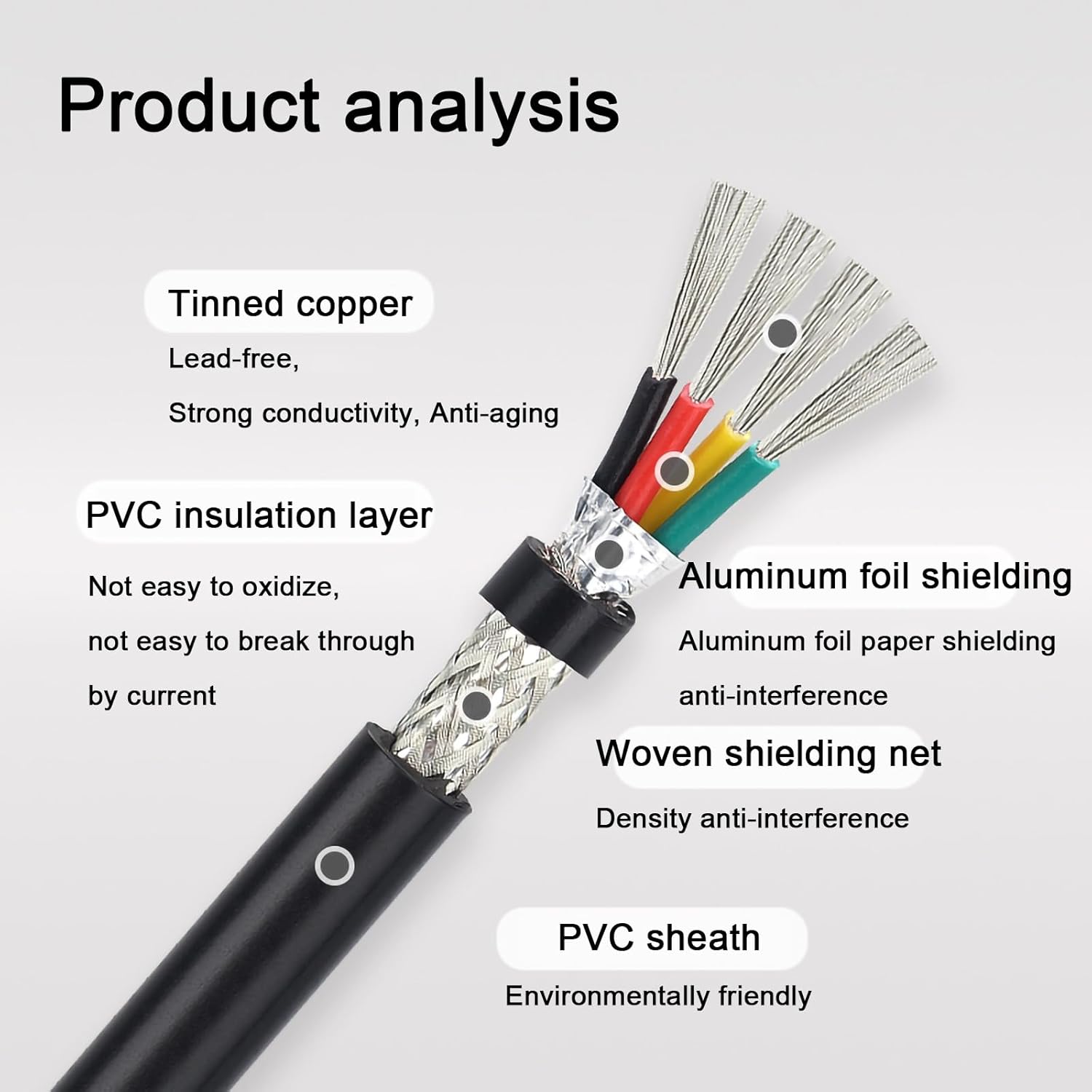

Specification:Material: Tinned Copper Conductor + PVC Jacket;Cable AWG: 28-18AWG; Conductor: 9 Core; Color: Black; Length: 25ft,100ft,320ft,640ftVoltage Rating: 300V; Temperature Range: -20℃ to 80℃; Shielding: Aluminum Foil + Tinned Copper BraidDurability: Double-layer shielding protects against EMI/RFI interference; Suitable for industrial machinery, automotive systems, CNC Router Machine, CNC VFD Spindle, and home electronics.28AWG:OD:5.4/5.6mm, 7/0.127TS*0.9mm+ Foil + 80*0.10TC26AWG:OD:5.9/6.2mm, 7/0.16TS*1.0mm+ Foil + 80*0.10TC24AWG:OD:6.0/6.5/6.8mm, 11/0.16TS*1.2mm+ Foil + 96*0.10TC22AWG:OD:7.2/7.6mm, 17/0.16TS*1.3mm+ Foil + 112*0.10TC20AWG:OD:8.0/8.4mm, 21/0.178TS*1.5mm+ Foil + 128*0.10TC18AWG:OD:8.5/9.3/9.8mm, 34/0.178TS*1.8mm+ Foil + 128*0.10TCFeatures:The cable adopts a multi-stranded copper conductor structure, providing excellent flexibility and bend resistance. Combined with aluminum foil and braided shielding, it offers strong electromagnetic interference (EMI) protection and ensures stable signal transmission.It is an ideal choice for efficient multi-signal transmission and integration.Warm reminder: The "C" in the product represents the number of cores.The pictures are for reference only, the size, colour, printing, etc. are subject to the actual product.

• 【Flame-Retardant PVC Jacket】Made with a flame-retardant PVC outer sheath that resists ignition and self-extinguishes after flame removal, helping reduce fire risk and enhance safety in low-voltage and industrial wiring applications
• 【Stranded Copper Conductors】Built with multi-stranded finely tinned copper conductors, this UL2464 certified cable delivers reliable conductivity, flexibility, and durability. Each conductor is individually PVC-insulated for stable long-term performance

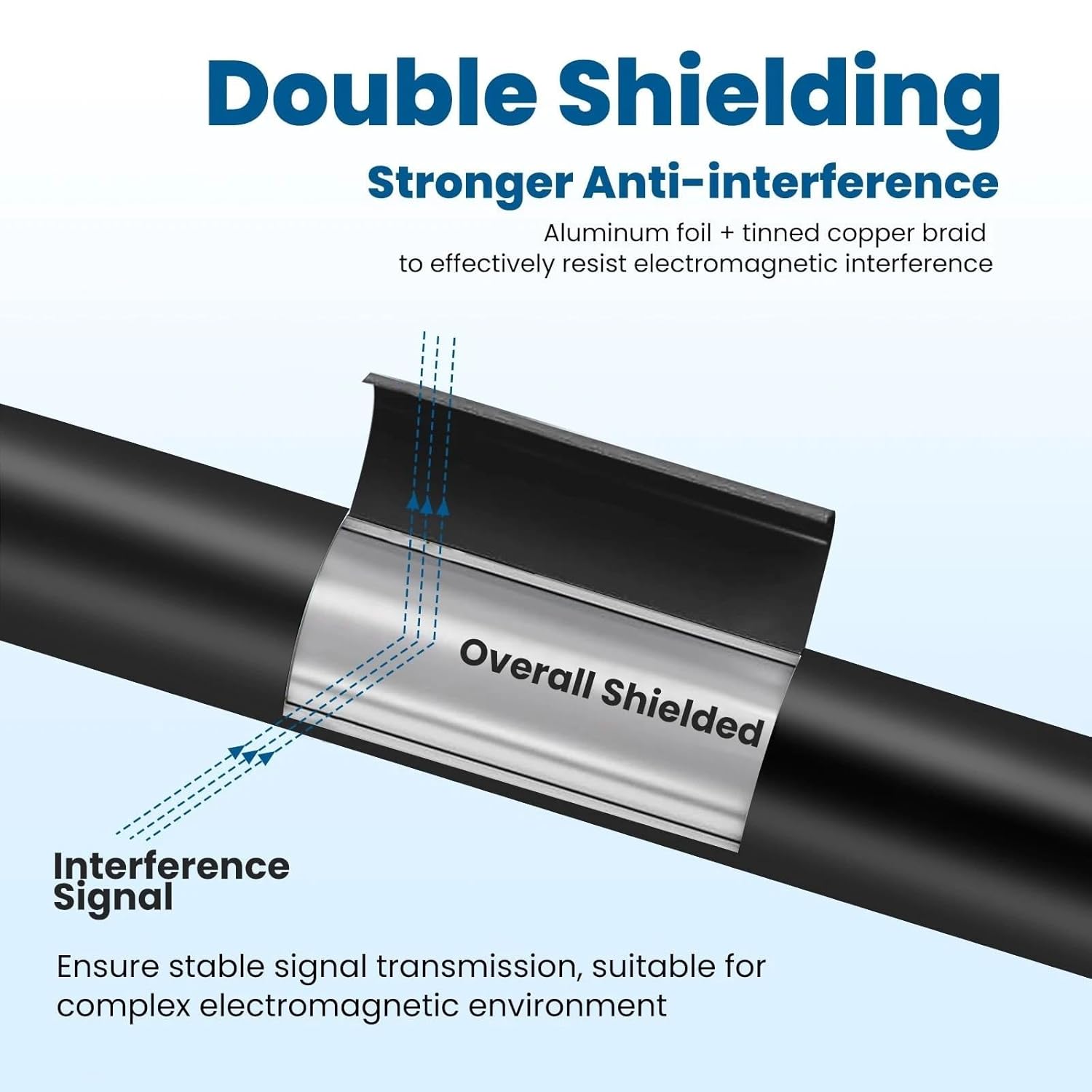

• 【Dual Shielding for EMI & Signal Integrity】Designed with aluminum foil shielding plus a high-density tinned copper braided shield, effectively reducing electromagnetic interference (EMI)
• 【Flexible Design for Easy Installation】Stranded conductors combined with a soft PVC insulation system provide excellent flexibility and bend resistance, making the cable easy to route in tight spaces, cable trays, and dynamic installations with limited clearance
• 【Wide Applications】Suitable for industrial automation, electronic control equipment, computers, office automation, communication systems, security wiring, LED lighting, transformers, solar panels, inverters, and other low-voltage power connections
